Spare Part Number:
CF-010
Technical Datasheet:
Protected Link

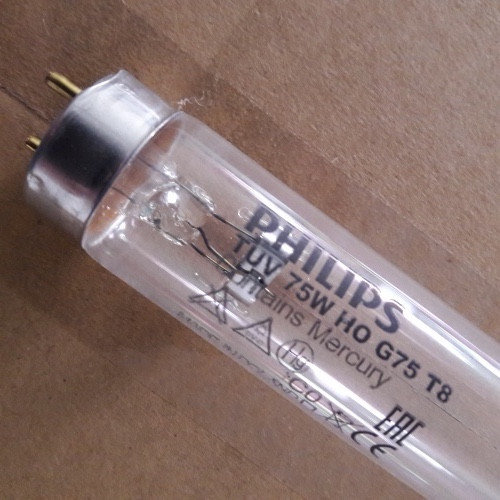

CF-010 BOX of 25 Lamp UVC TUV 75W HO
TUV T8 lamps are double-ended UVC (germicidal) lamps. TUV T8 lamps offer almost constant UV output over their complete lifetime, for high system efficacy. Moreover, they have a long and reliable lifetime, which allows maintenance to be planned for in advance.
Net Weight (Piece) 135.000 g
Dimensions
A (max) 1199.4 mm
B (max) 1206.5 mm
B (min) 1204.1 mm
C (max) 1213.6 mm
D (max) 28 mm
Cap-Base G13 [ Medium Bi-Pin Fluorescent]
Main Application Disinfection
Useful Life (Nom) 9000 h
---
Color Code TUV
Color Designation N-A
Depreciation at useful lifetime 10 %
---
Power (Nom) 75 W
Lamp Current (Nom) 0.84 A
Voltage (Nom) 110 V
Approval and Application
Mercury (Hg) Content (Nom) 2.0 mg
---
UV-C Radiation 100Hr (IEC) 25.5 W
EVO 2 A Light-Finisher 10 lamps Ref. TC1-10
EVO 3 ELF Light-Finisher 18 lamps Ref. TC1-18
EVO 3 EDLF - Light-Finisher 18 lamps Ref. TC1-18
| Suitable for the following equipment models: | |
|---|---|
| EVO 3 EDLF | |
| EVO 3 ELF | |
| Spare Part Type | |
| Electrical Component | |
| Spare Part Group | |
| Lamp | |
| Stock Type | |
| Wear and Tear (Consumable) | |
