Spare Part Number:
CR-001
Technical Datasheet:
Protected Link

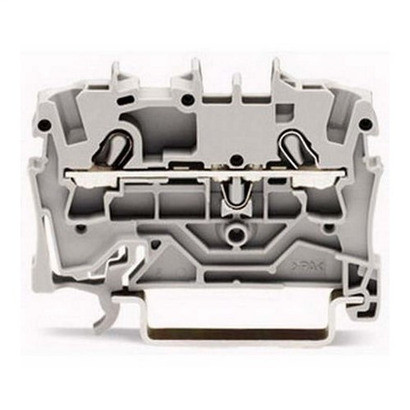

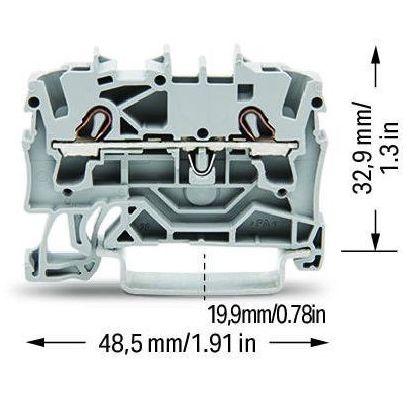

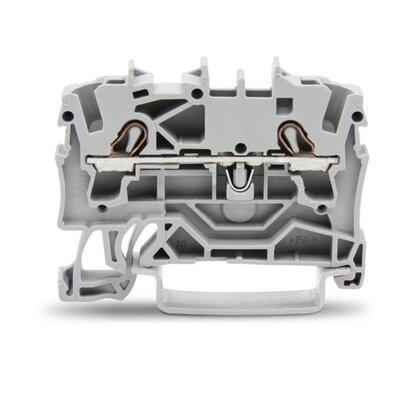

CR-001 2-conductor through terminal block
2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray
WAG20021201
Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
| Nominal voltage (III/3) | 800V |
| Rated impulse voltage (III/3) | 8kV |
| Rated current | 24A |
| Rated current 2 | 32A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Ratings per UL
| Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 600V |
| Rated current UL (Use Group B) | 20A |
| Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 20A |
Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
| Rated voltage CSA (Use Group B) | 600V |
| Rated current CSA (Use Group B) | 20A |
| Rated voltage CSA (Use Group C) | 600V |
| Rated current CSA (Use Group C) | 20A |
830 Ref TB6, TB7
812 Ref TB2-TB3-TB4
812 Ref TB2-TB3-TB4
| Spare Part Type | |
|---|---|
| Electrical Component | |
| Spare Part Group | |
| Others | |
| Stock Type | |
| Made to Order | |
