Spare Part Number:
CG-088
Technical Datasheet:
Protected Link
Certification: Protected Link - RoHS Certificate
Manual: Protected Link
Certification: Protected Link - RoHS Certificate
Manual: Protected Link

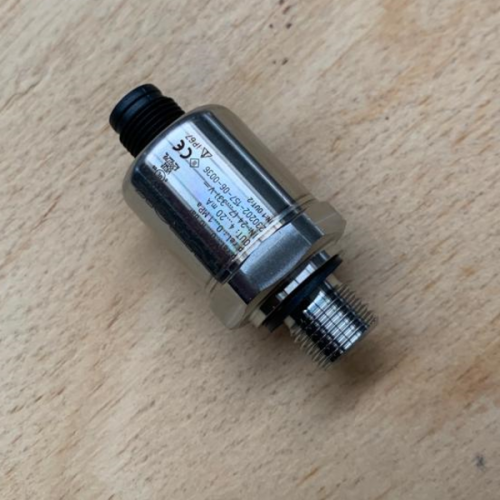

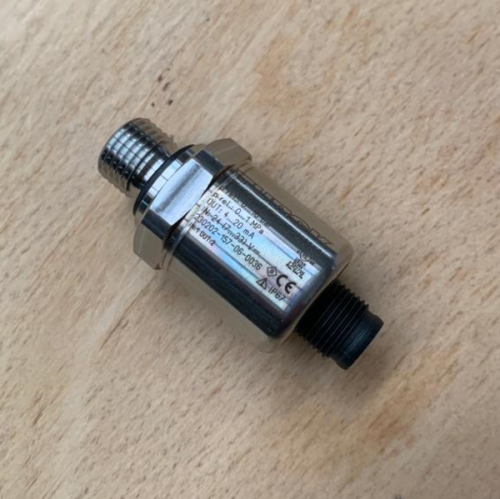

CG-088 Pressure sensor
Sensor Gauge Pressure Sensor for Fluid, Gas, 10bar Max Pressure Reading, Current
4-20mA / 0 - 10 bars
795-4737
PT10R-1004-I2-H1141
General Specs
| Pressure Reading Type | Gauge |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 10bar |
| Accuracy | ±0.25 % |
| Output Type | Current |
| Media Measured | Fluid, Gas |
| Process Connection | G1/4 |
| Electrical Connection | DIN 43650 Type A |
| Analogue Output | 4 → 20 mA |
| Response Time | 1 ms |
| Maximum Current | 20 mA |
| Supply Voltage | 8 → 30 V dc |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -40°C |
| IP Rating | IP65 |
| Maximum Operating Temperature | +125°C |
810 Ref. APS
812 Ref. APS
| Spare Part Type | |
|---|---|
| Hydraulic Component | |
| Spare Part Group | |
| Sensor | |
| Stock Type | |
| Standard Stock | |
