Spare Part Number:
AD-066
Net Weight:
540.00g
Net Dimensions:
90.00mm x 90.00mm x 23.00mm
Technical Datasheet:
Protected Link
AD-066 Deep groove ball bearing
NOTE: THIS HIGH TEMP BEARING NEEDS TO GREASED REGULARLY WITH AF-013
Single row deep groove ball bearing heat stabilised up to at least 120 °C (250 °F). The use of the correct lubricant is crucial in ensuring the optimal performance of bearings and preventing their failure. A high temperature grease, operate as a thin film that protects the components of the bearing.
NO LONGER IN USE WITH THE HOT ROLL IN 810 AND 812 - REPLACED BY AD-074
Ø50 x Ø90 x h23 mm
200°C - 22210EAW33ZZC3

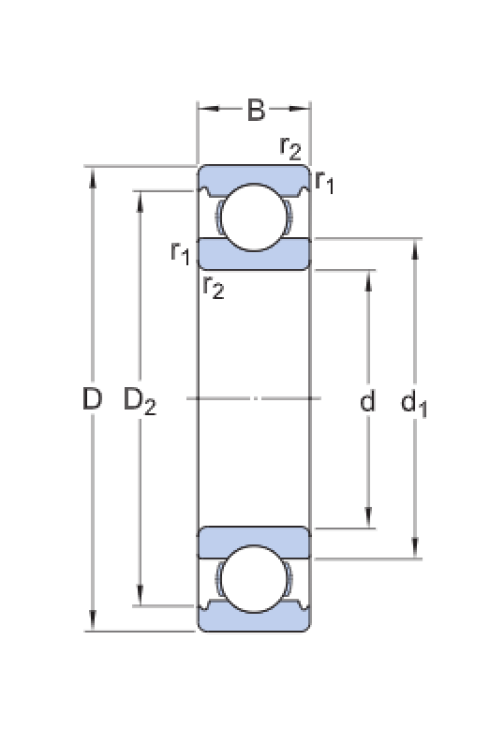

DIMENSIONS
 |
d |
50 mm
|
Bore diameter |
|---|---|---|---|
| D |
90 mm
|
Outside diameter | |
| B |
23 mm
|
Width | |
| d1 |
≈62.51 mm
|
Shoulder diameter | |
| D2 |
≈81.61 mm
|
Recess diameter | |
| r1,2 |
min.1.1 mm
|
Chamfer dimension |
810
812
| Spare Part Type | |
|---|---|
| Mechanical Component | |
| Stock Type | |
| Standard Stock | |
